Monte Carlo Simulation and Linear Algebra

CS1302 Introduction to Computer Programming

import math
import random
import numpy as np
import ipywidgets as widgets
%reload_ext divewidgets

Monte Carlo simulation¶

What is Monte Carlo simulation?

The name Monte Carlo refers to the Monte Carlo Casino in Monaco where Ulam's uncle would borrow money from relatives to gamble.

It would be nice to simulate the casino so Ulam's uncle did not need to borrow money to play in the casino.
Actually...,

Monte Carlo is the code name of the secret project for creating the hydrogen bomb.
Ulam worked with John von Neumann to program the first electronic computer ENIAC to simulate a computational model of a thermonuclear reaction.

(See also The Beginning of the Monte Carlo Method for a more detailed account.)

How to compute the value of $\pi$ ?

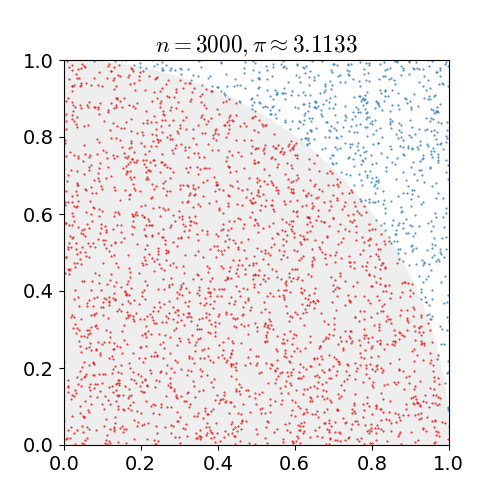

An application of Monte Carlo simulation is to approximate $\pi$ using the Buffon's needle.
There is a program written in javascript to do this.

The javascript program is long, so we will use an alternative simulation that is easier to understand/program.

If we uniformly randomly pick a point in a square. What is the chance the point is inside the inscribed circle, i.e., the biggest circle inside the square?

The chance is the circle's area divided by the square's area. Suppose the square has length $\ell$ , then the chance is

\frac{\pi (\ell /2)^2}{ (\ell)^2 } = \frac{\pi}4

(1)

independent of the length $\ell$ .

%%timeit -n 1 -r 1
def approximate_pi(n):
    ### BEGIN SOLUTION
    return (
        4
        * len(
            [True for i in range(n) if random.random() ** 2 + random.random() ** 2 < 1]
        )
        / n
    )
    ### END SOLUTION
print(f"Approximate: {approximate_pi(int(1e7))}\nGround truth: {math.pi}")

How accurate is the approximation?

The following uses a powerful library numpy for computing to return a $95\%$ -confidence interval.

%%timeit -n 1 -r 1
import numpy as np


def np_approximate_pi(n):
    in_circle = (np.random.random((n, 2)) ** 2).sum(axis=-1) < 1
    mean = 4 * in_circle.mean()
    std = 4 * in_circle.std() / n ** 0.5
    return np.array([mean - 2 * std, mean + 2 * std])


interval = np_approximate_pi(int(1e7))
print(
    f"""95%-confidence interval: {interval}
Estimate: {interval.mean():.4f} ± {(interval[1]-interval[0])/2:.4f}
Ground truth: {math.pi}"""
)

Linear Algebra¶

How to solve a linear equation?

Given the following linear equation in variable $x$ with real-valued coefficient $a$ and $b$ ,

a x = b,

(2)

what is the value of $x$ that satisfies the equation?

def solve_linear_equation(a, b):
    ### BEGIN SOLUTION
    return b / a if a != 0 else None
    ### END SOLUTION


@widgets.interact(a=(0, 5, 1), b=(0, 5, 1))
def linear_equation_solver(a=2, b=3):
    print(
        f"""linear equation: {a}x = {b}
       solution: x = {solve_linear_equation(a,b)}"""
    )

How to solve multiple linear equations?

In the general case, we have a system of $m$ linear equations and $n$ variables:

\begin{aligned} a_{00} x_0 + a_{01} x_1 + \dots + a_{0(n-1)} x_{n-1} &= b_0\\ a_{10} x_0 + a_{11} x_1 + \dots + a_{1(n-1)} x_{n-1} &= b_1\\ & \vdots\\ a_{(m-1)0} x_0 + a_{(m-1)1} x_1 + \dots + a_{(m-1)(n-1)} x_{n-1} &= b_{m-1}\\ \end{aligned}

(3)

where

$x_j$ for $j\in \{0,\dots,n-1\}$ are the variables, and
$a_{ij}$ and $b_j$ for $i\in \{0,\dots,m-1\}$ and $j\in \{0,\dots,n-1\}$ are the coefficients.

A fundamental problem in linear algebra is to compute the unique solution to the system if it exists.

We will consider the simpler 2-by-2 system with 2 variables and 2 equations:

\begin{aligned} a_{00} x_0 + a_{01} x_1 &= b_0\\ a_{10} x_0 + a_{11} x_1 &= b_1. \end{aligned}

(4)

To get an idea of the solution, suppose

a_{00}=a_{11}=1, a_{01} = a_{10} = 0.

(5)

The system of equations becomes

\begin{aligned} x_0 \hphantom{+ x_1} &= b_0\\ \hphantom{x_0 +} x_1 &= b_1, \end{aligned}

(6)

which gives the solution directly.

What about $a_{00}=a_{11}=2$ instead?

\begin{aligned} 2x_0 \hphantom{+ x_1} &= b_0\\ \hphantom{2x_0 +} 2x_1 &= b_1, \end{aligned}

(7)

To obtain the solution, we divide both equations by 2:

\begin{aligned} x_0 \hphantom{+ x_1} &= \frac{b_0}2\\ \hphantom{x_0 +} x_1 &= \frac{b_1}2. \end{aligned}

(8)

What if $a_{01}=2$ instead?

\begin{aligned} 2x_0 + 2x_1 &= b_0\\ \hphantom{2x_0 +} 2x_1 &= b_1\\ \end{aligned}

(9)

The second equation gives the solution of $x_1$ , and we can use the solution in the first equation to solve for $x_0$ . More precisely:

Subtract the second equation from the first one:

\begin{aligned} 2x_0 \hphantom{+2x_1} &= b_0 - b_1\\ \hphantom{2x_0 +} 2x_1 &= b_1\\ \end{aligned}

(10)

Divide both equations by 2:

\begin{aligned} x_0 \hphantom{+ x_1} &= \frac{b_0 - b_1}2\\ \hphantom{x_0 +} x_1 &= \frac{b_1}2\\ \end{aligned}

(11)

How to write a program to solve a general 2-by-2 system? We will use the numpy library.

Creating `numpy` arrays¶

How to store the coefficients?

In linear algebra, a system of equations such as

\begin{aligned} a_{00} x_0 + a_{01} x_1 &= b_0\\ a_{10} x_0 + a_{11} x_1 &= b_1 \end{aligned}

(12)

is written concisely in matrix form as $\mathbf{A} \mathbf{x} = \mathbf{b}$ :

\overbrace{\begin{bmatrix} a_{00} & a_{01}\\ a_{10} & a_{11} \end{bmatrix}}^{\mathbf{A}} \overbrace{ \begin{bmatrix} x_0\\ x_1 \end{bmatrix}} ^{\mathbf{x}} = \overbrace{\begin{bmatrix} b_0\\ b_1 \end{bmatrix}}^{\mathbf{b}},

(13)

where $\mathbf{A} \mathbf{x}$ is the matrix multiplication

\mathbf{A} \mathbf{x} = \begin{bmatrix} a_{00} x_0 + a_{01} x_1\\ a_{10} x_0 + a_{11} x_1 \end{bmatrix}.

(14)

We say that $\mathbf{A}$ is a matrix and its dimension/shape is $2$ -by- $2$ :

The first dimension/axis has size $2$ . We also say that the matrix has $2$ rows.
The second dimension/axis has size $2$ . We also say that the matrix has $2$ columns. $\mathbf{x}$ and $\mathbf{b}$ are called column vectors, which are matrices with one column.

Consider the example

\begin{aligned} 2x_0 + 2x_1 &= 1\\ \hphantom{2x_0 +} 2x_1 &= 1, \end{aligned}

(15)

or in matrix form with

\begin{aligned} \mathbf{A}&=\begin{bmatrix} a_{00} & a_{01} \\ a_{10} & a_{11} \end{bmatrix} = \begin{bmatrix} 2 & 2 \\ 0 & 2 \end{bmatrix}\\ \mathbf{b}&=\begin{bmatrix} b_0\\ b_1 \end{bmatrix} = \begin{bmatrix} 1\\ 1 \end{bmatrix}\end{aligned}

(16)

Instead of using list to store the matrix, we will use a numpy array.

A = np.array([[2.0, 2], [0, 2]])
b = np.array([1.0, 1])
A, b

Compared to list, numpy array is often more efficient and has more attributes.

array_attributes = set(attr for attr in dir(np.array([])) if attr[0] != "_")
list_attributes = set(attr for attr in dir(list) if attr[0] != "_")
print("\nCommon attributes:\n", *(array_attributes & list_attributes))
print("\nArray-specific attributes:\n", *(array_attributes - list_attributes))
print("\nList-specific attributes:\n", *(list_attributes - array_attributes))

The following attributes give the dimension/shape, number of dimensions, size, and data type.

for array in A, b:
    print(
        f"""{array}
    shape: {array.shape}
    ndim: {array.ndim}
    size: {array.size}
    dtype: {array.dtype}
    """
    )

Note that the function len only returns the size of the first dimension:

assert A.shape[0] == len(A)
len(A)

Unlike list, every numpy array has a data type. For efficient computation/storage, numpy implements different data types with different storage sizes:

np.byte, np.short, np.intc
np.ubyte, np.ushort, np.uintc, np.uint
np.half, np.single, np.double, np.longfloat
np.csingle, np.cdouble, np.clongdouble

E.g., int64 is the 64-bit integer. Unlike int, int64 has a range.

%%optlite -h 400
import numpy as np
min_int64 = np.int64(-2**63)
max_int64 = np.int64(2**63-1)
np.int64(2 ** 63)  # overflow error

We can use the astype method to convert the data type:

A_int64 = A.astype(int)  # converts to int64 by default
A_float32 = A.astype(np.float32)  # converts to float32
for array in A_int64, A_float32:
    print(array, array.dtype)

We must be careful about assigning items of different types to an array.

A_int64[0, 0] = 1
print(A_int64)
A_int64[0, 0] = 0.5
print(A_int64)  # intended assignment fails
np.array([int(1), float(1)])  # will be all floating point numbers

### BEGIN SOLUTION
heterogeneous_np_array = np.array([*range(3), *"abc"], dtype=object)
### END SOLUTION
heterogeneous_np_array

Be careful when creating arrays of tuple/list:

%%optlite -h 350
import numpy as np
a1 = np.array([(1, 2), [3, 4, 5]], dtype=object)
print(a1.shape, a1.size)
a2 = np.array([(1, 2), [3, 4]], dtype=object)
print(a2.shape, a2.size)

numpy provides many functions to create an array:

%%optlite -h 400 -l
import numpy as np
a = [np.zeros(0)]
a.append(np.zeros(1, dtype=int))
a.append(np.zeros((2, 3, 4)))

%%optlite -h 400 -l
import numpy as np
a = [np.empty(2)]
a.append(np.empty((2, 3, 4),
                  dtype=int))

%%optlite -h 400 -l
import numpy as np
a = [np.ones(2)]
a.append(np.ones((2, 3, 4),
                dtype=int))

%%optlite -l -h 400
import numpy as np
a = [np.eye(2)]
a.append(np.eye(3, dtype=int))

%%optlite -l -h 400
import numpy as np
a = [np.diag(range(1))]
a.append(np.diag(range(2)))
a.append(np.diag(np.ones(3), k=1))
# 1 above main diagonal

numpy also provides functions to build an array using rules.

%%optlite -l -h 400
import numpy as np
a = [np.arange(5)]
# like range but allow non-integer parameters
a.append(np.arange(2.5, 5, 0.5))

%%optlite -l -h 400
import numpy as np
# can specify the number of points instead of the step size
a = [np.linspace(0, 4, 5)]
a.append(np.linspace(2.5, 4.5, 5))

%%optlite -l -h 400
import numpy as np
a = np.fromfunction(lambda i, j: i * j, (3, 4))

We can also reshape an array using the reshape method/function:

%%optlite -l -h 500
import numpy as np
a = np.arange(2 * 3 * 4)
c1 = a.reshape(2, 3, 4)
# automatically calculate the size specified as `-1`
c2 = a.reshape(2, 3, -1)

%%optlite -l -h 500
import numpy as np
a = np.arange(2 * 3 * 4)
# default C ordering
c = a.reshape((2, 3, -1), order="C")
# F ordering
f = a.reshape((2, 3, -1), order="F")

The C ordering and F ordering can be implemented using list comprehension:

%%optlite -l -h 500
import numpy as np
a = np.arange(2 * 3 * 4)
# last axis index changes fastest
c = np.array(
    [[[a[i*3*4+j*4+k]
       for k in range(4)]
      for j in range(3)]
     for i in range(2)])
# first axis index changes fastest
f = np.array(
    [[[a[i+j*2+k*3*2]
       for k in range(4)]
      for j in range(3)]
     for i in range(2)])

ravel is a particular case of reshaping an array to one dimension.
A similar function flatten returns a copy of the array but ravel and reshape returns a dynamic view whenever possible.

array = np.arange(2 * 3 * 4).reshape(2, 3, 4)
array, array.ravel(), array.reshape(-1), array.ravel(order="F")

def print_array_entries_line_by_line(array):
    ### BEGIN SOLUTION
    for i in array.flatten():
        print(i)
    ### END SOLUTION


print_array_entries_line_by_line(np.arange(2 * 3 * 4).reshape(2, 3, 4))

Operating on `numpy` arrays¶

How to verify the solution of a system of linear equations?

Before solving the system of linear equations, let us try to verify a solution to the equations:

\begin{aligned} 2x_0 + 2x_1 &= 1\\ \hphantom{2x_0 +} 2x_1 &= 1 \end{aligned}

(17)

numpy provides the function matmul and the operator @ for matrix multiplication.

print(np.matmul(A, np.array([0, 0])) == b)
print(A @ np.array([0, 0.5]) == b)

Note that the comparison on numpy arrays returns a boolean array instead of a boolean value, unlike the comparison operations on lists.

To check whether all items are true, we use the all method.

print((np.matmul(A, np.array([0, 0])) == b).all())
print((A @ np.array([0, 0.5]) == b).all())

How to concatenate arrays?

We will operate on an augmented matrix of the coefficients:

\begin{aligned} \mathbf{C} &= \begin{bmatrix} \mathbf{A} & \mathbf{b} \end{bmatrix}\\ &= \begin{bmatrix} a_{00} & a_{01} & b_0 \\ a_{10} & a_{11} & b_1 \end{bmatrix} \end{aligned}

(18)

numpy provides functions to create block matrices:

np.block?
C = np.block([A, b.reshape(-1, 1)])  # reshape to ensure same ndim
C

To stack an array along different axes:

array = np.arange(1 * 2 * 3).reshape(1, 2, 3)
for concat_array in [
    array,
    np.hstack((array, array)),  # stack along the first axis
    np.vstack((array, array)),  # second axis
    np.concatenate((array, array), axis=-1),  # last axis
    np.stack((array, array), axis=0),
]:  # new axis
    print(concat_array, "\nshape:", concat_array.shape)

How to perform arithmetic operations on a numpy array?

To divide all the coefficients by $2$ , we can write:

D = C / 2
D

Note that the above does not work for list.

%%optlite -l -h 500
[[2, 2, 1], [0, 2, 1]] / 2

Arithmetic operations on numpy arrays apply if the arrays have compatible dimensions. Two dimensions are compatible when

they are equal, except for
components equal to 1.

numpy uses broadcasting rules to stretch the axis of size 1 up to match the corresponding axis in other arrays.
C / 2 is an example where the second operand $2$ is broadcasted to a $2$ -by- $2$ matrix before the elementwise division. Another example is as follows.

three_by_one = np.arange(3).reshape(3, 1)
one_by_four = np.arange(4).reshape(1, 4)
print(
    f"""
{three_by_one}
*
{one_by_four}
==
{three_by_one * one_by_four}
"""
)

Next, to subtract the second row of the coefficients from the first row:

D[0, :] = D[0, :] - D[1, :]
D

Notice the use of commas to index different dimensions instead of using multiple brackets:

assert (D[0][:] == D[0, :]).all()

Using this indexing technique, it is easy to extract the last column as the solution to the system of linear equations:

x = D[:, -1]
x

This gives the desired solution $x_0=0$ and $x_1=0.5$ for

\begin{aligned} 2x_0 + 2x_1 &= 1\\ \hphantom{2x_0 +} 2x_1 &= 1\\ \end{aligned}

(19)

numpy provides many convenient ways to index an array.

B = np.arange(2 * 3).reshape(2, 3)
B, B[(0, 1), (2, 0)]  # selecting the corners using integer array

B = np.arange(2 * 3 * 4).reshape(2, 3, 4)
B, B[0], B[0, (1, 2)], B[0, (1, 2), (2, 3)], B[
    :, (1, 2), (2, 3)
]  # pay attention to the last two cases

assert (B[..., -1] == B[:, :, -1]).all()
B[..., -1]  # ... expands to selecting all elements of all previous dimensions

B[B > 5]  # indexing using boolean array

Finally, the following function solves 2 linear equations with 2 variables.

def solve_2_by_2_system(A, b):
    """Returns the unique solution of the linear system, if exists,
    else returns None."""
    C = np.hstack((A, b.reshape(-1, 1)))
    if C[0, 0] == 0:
        C = C[(1, 0), :]
    if C[0, 0] == 0:
        return None
    C[0, :] = C[0, :] / C[0, 0]
    C[1, :] = C[1, :] - C[0, :] * C[1, 0]
    if C[1, 1] == 0:
        return None
    C[1, :] = C[1, :] / C[1, 1]
    C[0, :] = C[0, :] - C[1, :] * C[0, 1]
    return C[:, -1]

# tests
for A in (
    np.eye(2),
    np.ones((2, 2)),
    np.stack((np.ones(2), np.zeros(2))),
    np.stack((np.ones(2), np.zeros(2)), axis=1),
):
    print(f"A={A}\nb={b}\nx={solve_2_by_2_system(A,b)}\n")

Universal functions¶

Why does the first line of code below return two arrays but the second code return only one array? Shouldn't the first line of code return the following?

array([[(0,1), (0,2), (0,3)],
       [(1,1), (1,2), (1,3)]])

print(np.fromfunction(lambda i, j: (i, j), (2, 3), dtype=int))
print(np.fromfunction(lambda i, j: (i * j), (2, 3), dtype=int))

From the documentation, fromfunction applies the given function to the two arrays as arguments.

The first line of code returns a tuple of the arrays.
The second line of code multiplies the two arrays to give one array, according to how multiplication works for numpy arrays.

Indeed, numpy implements universal/vectorized functions/operators that take arrays as arguments and perform operations with appropriate broadcasting rules. The following is an example that uses the universal function np.sin:

import matplotlib.pyplot as plt


@widgets.interact(a=(0, 5, 1), b=(-1, 1, 0.1))
def plot_sin(a=1, b=0):
    x = np.linspace(0, 2 * math.pi)
    plt.plot(x, np.sin(a * x + b * math.pi))  # np.sin, *, + are universal functions
    plt.title(r"$\sin(ax+b\pi)$")
    plt.xlabel(r"$x$ (radian)")

In addition to making the code shorter, universal functions are both efficient and flexible. (Recall the Monte Carlo simulation to approximate $\pi$ .)

Exercise 5

Explain how the Monte Carlo simulation work using universal functions:

def np_approximate_pi(n):
    in_circle = (np.random.random((n,2))**2).sum(axis=-1) < 1
    mean = 4 * in_circle.mean()
    std = 4 * in_circle.std() / n**0.5
    return np.array([mean - 2*std, mean + 2*std])

Solution to Exercise 5

random.random generates a numpy array for $n$ points in the unit square randomly.
sum sums up the element along the last axis to give the squared distance.
< returns the boolean array indicating whether each point is in the first quadrant of the inscribed circle.
mean and std returns the mean and standard deviation of the boolean array with True and False interpreted as 1 and 0, respectively.

Monte Carlo Simulation and Linear Algebra
